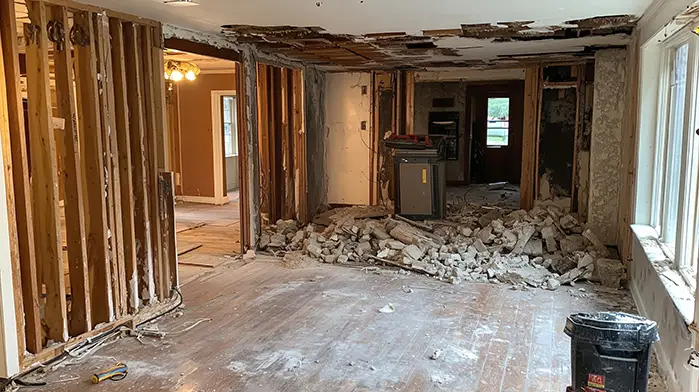

Want to open up your home, combine two rooms or create a larger open-plan living area?
Before removing a wall, you need to know what it is supporting.
Engineering On Demand provides structural engineering for Wall Removal Perth projects, helping homeowners, builders and renovators determine whether an existing wall is structural and design the supporting structure required for its safe removal.
Whether you’re planning a Load Bearing Wall Removal Perth, renovating an older home or simply want to Remove Internal Wall Perth, our engineers can assess the structure and provide clear engineering documentation for construction.
It isn’t always obvious whether an internal wall is load-bearing.
The direction of roof framing can provide clues, but the actual structural arrangement needs to be considered before demolition begins.
As your Wall Removal Engineer Perth, Engineering On Demand can review the available plans and inspect the existing structure where required to determine how the wall interacts with the building.
We can then establish whether:
01 — The wall is non-load-bearing
and can potentially be removed without substantial structural modification.
OR
02 — The wall is load-bearing
and an engineered support system is required before it is removed.
That assessment should happen before the wall comes down.
A structural beam is commonly used to replace the support previously provided by a load-bearing wall.
Depending on the project, this may involve:
Steel can provide substantial capacity while allowing relatively long spans and compact member sizes.
Engineered timber or conventional timber members may be appropriate for some residential applications.
Structural members may be required to support roofs, upper floors and large openings.
Posts or columns may be required at either end of the beam to transfer loads downward.
The beam and supports need appropriate connections to ensure loads are transferred through the structure.
Existing supports need to be capable of carrying the concentrated loads introduced by the new beam. Additional footings may sometimes be required.
Our Load Bearing Wall Engineer considers the complete load path rather than simply selecting a beam.
A particularly common application is removing an existing external wall when extending a house.
The old external wall may support a significant portion of the existing roof.
Removing it can create a large uninterrupted opening between the original home and the new extension—but an engineered beam or frame may be required to replace the structural support.
Our engineers can coordinate the wall removal with the engineering for the extension itself.
Removing or altering a load-bearing wall can constitute structural building work, so the applicable approval requirements should be established before construction begins.
In Western Australia, building work is regulated under the state’s building approval framework, and the relevant permit authority determines whether a building permit is required for the proposed work.
WA Government – Building approvals
Where a building permit or certification is required, Engineering On Demand can also assist with the supporting documentation and approval process.
The wall’s position, roof or floor framing direction, existing beams and structure above all need to be considered. In some cases plans are sufficient, while other properties require a site inspection.
Usually, yes, provided the loads it currently supports can be safely transferred through an appropriately engineered replacement structure.
A structural beam is commonly installed over the new opening. Depending on the building, it may also require posts, connections and potentially new or upgraded foundations.
There isn’t a universal maximum opening. The achievable span depends on the loads, building configuration, beam material, available beam depth and supporting structure.
Sometimes. A flush or concealed beam may be possible, but it depends on the existing framing and available ceiling or floor space. Concealed installations can require more extensive structural modifications.
Where the existing structural arrangement cannot be adequately determined from available documentation, a site inspection may be required.
Yes. Our Structural Wall Removal service can include engineering drawings detailing beams, supports, connections and other required structural modifications.
Yes. Where approval is required, Engineering On Demand can also assist with building certification and the council application process.
